Suited to your needs
ET is able to quickly test the turbocharger's electronic and electropneumatic actuators.
It has been designed to carry out the diagnosis and possible repair of the actuators used on modern turbochargers.
Completeness and reliability make the ET tester the new benchmark for professionals in the sector.
Versatility and Simplicity
Its robustness, combined with intuitive data visualization thanks to the generous display, makes it possible to obtain all the information needed for a complete diagnosis.
Communication via PWM and CANBUS signals takes place through the use of a cable dedicated to each type of actuator.
Its Features
The device allows you to check the uniformity of movement of the turbo variable-geometry lever;
to verify the correct functioning of the electronics, as well as the mechanical parts;
to manage the DC motor used inside them for lever movement.
Connectors and Cables
ET comes with 28 cables with original connectors compatible with more than 730 turbochargers.
Hella, Siemens (VW/Audi), Mitsubishi, Sonceboz, Hitachi, Continental, Magneti Marelli, Mando, Kamtec, Mahle, Denso actuators, and many others, are the manufacturers supported by ETP.
Consult the complete list of supplied cables, divided by manufacturer.
Operational Efficiency Takes Center Stage
The ET tester can be successfully used by all professionals in the sector involved in turbocharger overhaul, as well as by any auto repairer looking for a reliable partner to solve the insidious issues related to the incorrect functioning of this delicate component.
Technical Specifications
|
MODEL NAME |
ET |
|---|---|
|
|
|
|
ELECTRONICS |
|
|
Rated Voltage |
15 V DC |
|
Rated Current |
4 A |
|
Phase |
1 Phase + N + PE 50 - 60 Hz |
|
Maximum Power |
65 W |
|
|
|
|
MACHINE |
|
|
Dimensions W x D x H |
180 x 130 x 50 mm |
|
Weight |
495 g |
|
Ambient operating temperature limits (min/max) |
5 /45 °C |

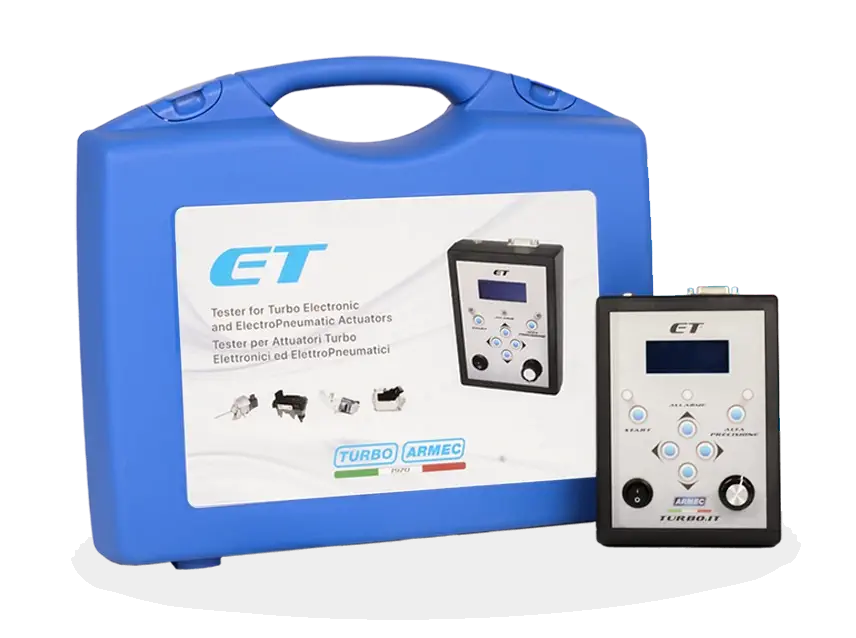

Always Ready
Thanks to the practical case, you can carry with you everything you need for an optimal intervention.
Easy to transport, it guarantees protection for your valuable equipment. Through dedicated slots, your supplied kit will remain organized and ready for use.
Technical Specifications
|
ET Case |
|
|---|---|
|
|
|
|
Dimensions |
|
|
External Dimensions |
456 x 385 x 144 mm (W x H x D) |
|
Weight |
|
|
Weight |
4,1 kg |
